The SpeedSys300 ODS301 overspeed detection system is an overspeed detection and protection system with additional monitoring from Meggitt’s vibro-meter® product line. It is a dedicated safety system for critical rotating machinery, designed using the latest technology and standards for one main purpose – to accurately detect overspeed, underspeed and/or acceleration in order to shutdown a machine and protect plant and personnel.

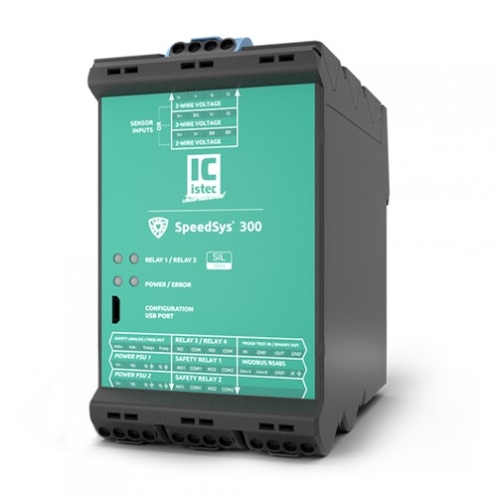

SpeedSys® 300 SIL 3 Rated Overspeed Protection System
Additional Information
option | Over Speed Protection, Speed Monitoring, Speed Transmitter |
---|
Documentation
Product Description
The SpeedSys 300 is a SIL 3 rated overspeed protection system for rotating machinery. It delivers the core layer of protection with a compact architecture. Its small technical footprint enables low-impact retrofitting and extends the range of machinery which can be protected.
System
System features
- SIL 3 certified protection
- 8 ms system response time
- 2 safety relays + 1 safety analog output
- Suitable for Hall-effect-, electromagnetic- or proximity sensors
- Automated proof-tests
- ATEX/IECEx Zone 0,1,2 (Ex ia) isolated inputs
- Advanced self-monitoring and diagnosis
- 10 year proof-test interval (typical)
- External voting for redundant configurations
- Modbus
Standards
- API 670
- API 612
- IEC 61508, SIL 3
