The Thermo Scientific™ Ramsey™ Flex is a complete solution for belt conveyor scale management, designed from the ground up to meet industrial requirements for bulk material handling. Incorporating three integrator designs and two digitizers, it offers engineers the flexibility to design robust, fit-for-purpose weighing systems optimally matched to business requirements. The Thermo Scientific™ Ramsey™ Series 14 precision belt scale system is specifically designed for high accuracy or basis-of-payment applications requiring certification by government and regulatory agencies. It is extremely accurate to within +/-0.125% and is the most widely certified belt scale in the world. This precision belt scale system lets you monitor production output and inventory, or regulate product loadout, while providing vital information for the effective management and efficient operation of your business. Achieve high accuracy in your weighing applications requiring certification by government and regulatory agencies using the Thermo Scientific™ Ramsey™ Series 14 Belt Scale System. The Ramsey Series 14 Belt Scale System consists of a 4-idler, 4-load cell weighbridge, speed sensor and electronics to provide stable high-accuracy weighing.
Thermo Scientific™ Ramsey™ Precision Conveyor Belt Scales Model 10-14 Flex
Additional Information
| option | Belt Scales, Conveyor Belt Scale |
|---|
Documentation
Product Description
The Thermo Scientific Ramsey Series 14 is extremely accurate to within +/-0.125% and is the most widely certified belt scale in the world. The Weighbridge is a unitized, assembled unit
capable of supporting three or four idlers. The weighbridge assembly houses four (4)precision loadcells that serve as the primary weight sensors. The loadcells generate an electrical output signal proportional to belt loading, usually expressed in pounds per foot. The full floating weighbridge mounts to the conveyor stringers and support the weigh idlers. The 10-14 HD is suitable for use in the Alberta Oilsands and the aggregate industry for extreme environments. The Thermo Scientific™ Ramsey™ Flex is a complete solution for belt conveyor scale management, designed from the ground up to meet industrial requirements for bulk material handling. Incorporating three integrator designs and two digitizers, it offers engineers the flexibility to design robust, fit-for-purpose weighing systems optimally matched to business requirements.
- A large touch screen HMI, making it easy for operators to access information, switch between functions, and perform operations.
- Industry 4.0 connectivity, including compatibility with MODBUS and PROFIBUS, for centralized control room operation or remote access.
- Multiple options designed to improve cost efficiency in various applications, including the ability to share one integrator across two belt scales, or to use a blind integrator where HMI is not required.

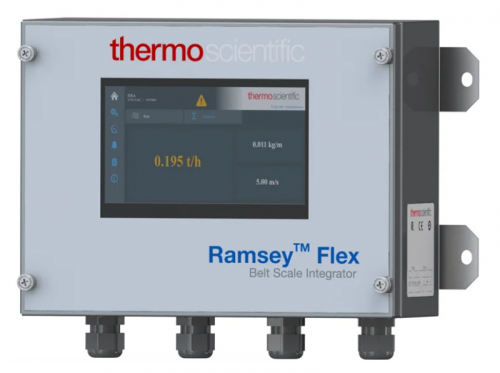

- New Flex Integrator with 3 versions
- Field Mount with HMI
- Panel Mount with HMI
- Blind Field Mounted without HMI
- 316 SS Construction Enclosures
- IP66 Rated
- Supports inputs from 2 Digitizers for 2 Scales
- Standard Communication Protocols
- Profibus
- Profinet
- Ethernet IP
- Modbus TCP
- Modbus RTU
- Standard I/O
- Inputs
- Qty Two 4-20mA (or 0-20mA) isolated current loop inputs
- Qty Two 0-5 Vdc (1-5 Vdc) voltage inputs
- Qty Four 24 Vdc Digital Inputs
- Outputs
- Qty Two 4-20mA (or 0-20mA) isolated current loop outputs
- Qty Two 0-5 Vdc (1-5 Vdc) voltage Outputs
- Qty Four Optically Isolated 24 Vdc @100mA Digital push pull outputs
- Inputs
- HMI Integrator
- Operating Temperature -30C to 55C
- Intuitive, Web Based User Interface
- 7 in Capacitive Touch Screen
- Easy to Read
- Simple Navigation
- Pop-up Keypad
- Improved Functionality & Diagnostics

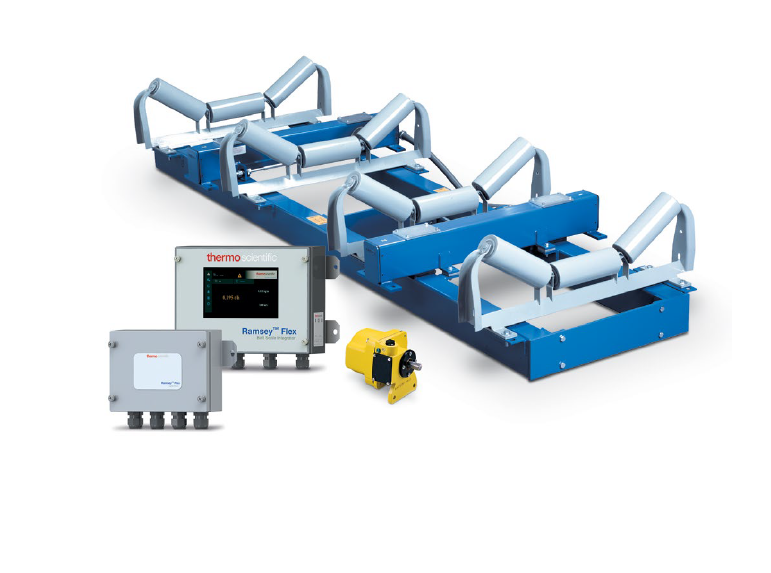

The Weighbridge
Three- or four-idler suspension-type Ramsey 10-14 weighbridges feature full-floating unitized assemblies with no pivots and
no moving parts.
Weighbridge Advantages
• No moving or wearing parts lead
to a longer life span
• No adjustments needed
• Factory pre-assembled and easily installed
• Four strain gauge load cells applied
in tension
• Full-floating, pivotless weigh platform
Belt Speed Sensor Advantages
• Rugged, cast-aluminum housing suitable
for outdoor installations
• A.C. pulse generator means no brushes
to adjust or replace
Premium Remote Digitizer Advantages
• Housed in a 316 SS Enclosure IP 66 Rated
• Two Versions Available
• Single Version – One Load Cell Channel
- Quad Version – Four Load Cell Channel
• Speed Sensor Input on Digitizer
