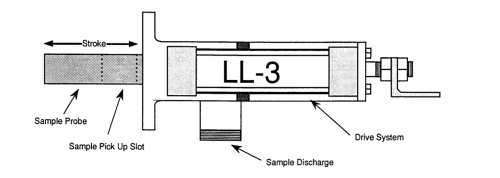

Automatic Sampler for liquids and slurries from pressurized conveying lines. The QCEC Model LL-3 Liquid Flow Automatic Sampler uses a 440 C stainless steel reciprocating probe with 15 cc sample capacity to receive a sample. Each sample cycle begins with the control actuating a 4 way solenoid valve. The solenoid valve activates twin air cylinders extending the probe into the process line. The probe is retracted and the sample is discharged into the composite container.
LL-3 Automatic Sampler
Additional Information
option | Sludge/Wastewater |
---|
Documentation
