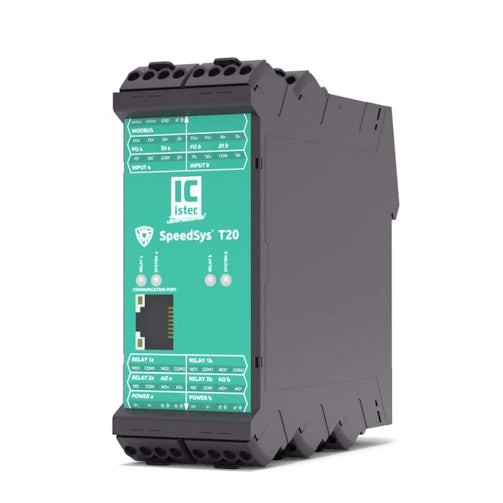

The Istec SpeedSys T20 is a dual-channel speed monitor and switch that delivers speed monitoring and protection functions to rotating equipment. It converts the signals from speed sensors to processed outputs. Its small technical footprint allows for a low-impact installation, to enable speed monitoring to a wide range of applications. The T20 is part of the SpeedSys tachometer series with the T10 and T30.
SpeedSys® T20
Additional Information
| option | Over Speed Protection, Speed Monitoring, Speed Transmitter |
|---|
Product Description
The SpeedSys T20 is a dual-channel speed monitor and switch that delivers speed monitoring and protection functions to rotating equipment. It converts the signals from speed sensors to processed outputs. Its small technical footprint allows for a low-impact installation, to enable speed monitoring to a wide range of applications. The T20 is part of the SpeedSys tachometer series with the T10 and T30.
The SpeedSys T20 is used as a 2-channel monitoring and switching device for speed conditions on rotating machinery.
Typical applications are:
- Aeroderivatives
- Micro turbines
- Wind turbines
- Gas- and steam turbines
- Hydro turbines (Kaplan, Francis, Pelton)
- Compressors
- Expanders
- Marine applications
- Elevators
- General automation
The SpeedSys T20 has four relays. The system accepts signal inputs from 3-wire voltage sensors (Hall-effect & proximity), 2-wire voltage sensors (MPU), and digital input signals from speed encoders. Due to its compact design the T20 has a small technical footprint and features a low-impact installation. The T20 comes with easy to use push-in connectors and is mounted on a DIN-rail.
System features
- 2 independent channels
- Redundant sensor inputs
- Redundant power supply
- 4 high speed relays
- 2x DPST
- 2x SPST
- Fast 8 ms hardware response time (relays)
- Highly accurate analog signal (4-20 mA)
- Signal filter and line amplifier
